Michael Chungkun Chen
Doris Kei-yue Ching
32-Bit Variable Time Adder Modeling Tools
Final Report
Abstract
In this project, we build a Variable Time Adder Modeler using C++ language. There is a user interface that allow user to create different variable time adder design along with specifying different input delay distribution for each design to be entered into the system. The system will then model the critical path timing and determine the resulting sum with delay information, and also calculate the time the adder will assert the done signal. This tool is useful because unlike synchronous adder whose delay depends only on the worse case input, asynchronous adder’s delay is different in each execution and depends on each input distribution. So the system allows users to design an arbitrary variable time adder that is optimal under a given input specification. After finishing the modeler and verifying its functionalities, we create various input delay distribution and built various variable time adder design, ran though the system to compare the results and evaluate the different adder type trade off.
Introduction
This section presents some background materials on variable time adder drawn from chapter 2 of COMS 252A Digital Arithmetic Textbook [1]. Variable adder can be implemented by any of the basic adder type (such as Carry Ripple, Carry Look Ahead etc) by adding a double-rail coding to the carry in signals so that the circuit have a way to sense when the addition is completed.
When either carry zero or carry one is high will signify the adder has completed adding.

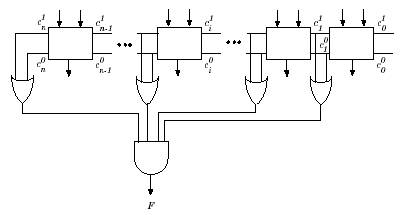

There are two types of Variable time adder, as illustrated below.
Variable Time Adder Type 1 - Serial Variable Time Adder:
This a basic variable time adder whose delay corresponds to actual carry propagation and critical path gate switching delays through the entire path of the particular input operands.

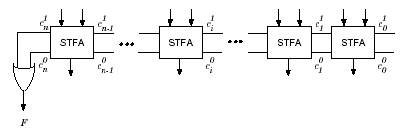

Variable Time Adder Type 2 – Parallel Variable Time Adder:
The advantage to this scheme is that the addition time is determined by the longest carry propagation and gate switching delay. However there is an increase in gate delay of calculating the finish signal since in type 2 adder the signal has to go through n-input AND gate. Also the area would increase with a larger OR-AND network compared to type 1 variable time adder.
Our modeler will allow user to design a 32-bit serial or parallel variable time adder using the 8 basic adder types presented in the next section and model the resulting delays of the addition and the delays of each of the resulting sum bits. To model the delay, it uses the gate characteristics of CMOS family from page 108 of the textbook. Additionally, it assumes a CMOS switch has a switching delay of 0.1ns.
In our modeler, we allow user to build any arbitrary 2 level adders using the fixed module type the system allow. The chosen adder types are the basic adder types. Due to time limitation, we choose to implement only 2 level grouping, additional levels and more adder types could be added to the system in the future (refer to conclusion section). The 4 basic adder blocks are1 bit full adder, 1 bit switch full adder, 2 bit CLA, 4 bit CLA, and the 8 allowed adder types are Carry Ripple, Switched Carry Ripple, Carry Lookahead (group 2 and 4), Carry Skip, Carry Select, and Conditional Sum adder. The details of the implementation and delay calculation will be presented in the next section.
Implementation
The system is implemented in two parts, the Adder Simulator, and the Graphical User Interface. The user interface allows for the creation, change, deletion of signals and adders, and also enables us to execute the simulator with selected inputs, outputs, and adders. We are implementing the system on a windows system, using windows API calls.
A big issue we had was how complicated we wanted to model the signals in our system.
In a simple model all we would need would be to keep track of average propagation delay of signal from the input to output.
A very complicated model would propagate the signal through
the gates, one input of the gate would change the result to one value, while a
little later, the other input would change and the result would change
back. This would cause spikes in the
output. There are many timing cases to
worry about, high to low to high, and more possible transitions depending of
the number of inputs to the gates, giving us a permutation of the number of
inputs. This was too complex for our
project, so we decided on a middle ground.
We would only consider the previous signals and the current signals to
determine if the output of a certain gate transitions from high to low, low to
high, or stays the same. If it stays
the same we took the latest input signal as the time the output is valid, and if
it changes, we would add on the appropriate delay.
The Adder Simulator is implemented on many different levels. We built the system from a bottom up approach starting at the gate level, then going up to a module level and finally progressing to the system level. Both serial and parallel variable time adders used the same basic adder modules, so we had to try to make all the modules follow the restriction that serial time adders have, modules should not generate output until they receive valid input.
The gate level was implemented separately, so two methods can be found. For the simpler designs, the circuits were analyzed by hand and results were placed into look up tables. These calculations would include calculating the fan-out based on the equivalent load of each gate on the output. We then performed the look up for different inputs. For more complex designs, hand calculation was not feasible, so we modeled a gate level simulator.
The gate level simulator basically allowed us to connect gates together into a circuit; we would then place the input gates onto a queue, and propagate the signal down to the output. When all the input signals are not ready for a certain gate, it is placed at the end of the queue to allow other gates to be processed first. The fan-out of each gate is calculated dynamically during the simulation of the circuit, since the connections of the adder is specified, each gate can detect what load it has to drive.
On a module level we implemented eight basic variable time adder modules. The basic modules include the Carry Ripple
adder, which we often used as a control group.
The Carry Ripple adder is basically a self-timed full adder module. The output can then be computed with:
si=pi(xor)c1i+1
Building
up from the basic module, we implemented the Switched Carry Ripple. This adder basically contains fast
transistor switches, which propagate the carries through to the output. The Switched Carry Ripple also allows local
bits to generate carries of zero or one, reducing carry chains.

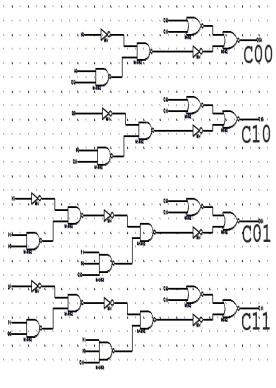

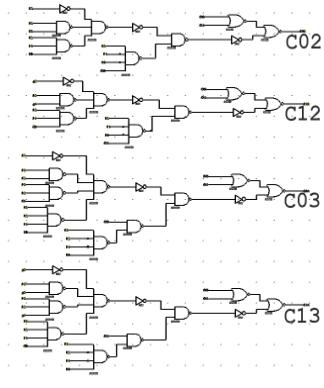

The fan-in and fan-out and loads of the Carry Look Ahead adder would greatly vary depending on the number of bits the Look Ahead circuit handles. So we designed two separate modules for the CLA, giving us a two-bit module and a four-bit module.
Cij=Tij (Cin0 + Cin1)
Cin0, Cin1 are group carry in
T10=K0+P0C00
T11=G0+P0C01
T20=(K1+P1K0)+P1P0C00
T21=(G1+P1G0)+P1P0C01
T30=(K2+P2K1+P2P1K0)+P2P1P0C00
T31=(G2+P2G1+P2P1G0)+P2P1P0C01
T40=(K3+P3K2+P3P2K1+P3P2P1K0)+P3P2P1P0C00
T41=(G3+P3G2+P3P2G1+P3P2P1G0)+P3P2P1P0C01
The inputs for the G, P, and K signals come from the GPK module. We had to modify the equations to use the P signal instead of A because for generation of Carry out 0 would be incorrect if we used A. Due to the nature of CLA adders, it is supposed to generate multiple carry out signals at the same time, but this violates the nature of serial variable time adders, so we decided to implement a compromise. Each CLA unit must wait for the group carry in before generating output, but the four carry out signals can be generated in any order. It is not a perfect resolution, but it does help simplify the implementation.
We then created four more adders, which use the basic types as sub adders, basically taking our adder design to two level adders. We have the Carry Skip Adder, Carry Select Adder, and Conditional Sum Adder. The Carry Select and Conditional Sum adders both use the Conditional Adder.
|
Adder Type |
Level |
Group size Restrictions |
|
Carry Ripple |
1 |
1-32 |
|
Switched Carry Ripple |
1 |
1-32 |
|
Carry Look Ahead 2 bit |
1 |
2 |
|
Carry Look Ahead 4 bit |
1 |
4 |
|
Carry Skip |
2 |
Depends on SubAdder |
|
Conditional Adder |
1.5 |
Can not be used by itself |
|
Carry Select |
2 |
Subadder group size |
|
Conditional Sum |
2 |
2X Subadder group size |
The system level contains a few key aspects. We have a Variable Time Adder list, which keeps a list of all the different Adders we want to create and add with. We also have an Operant list which keeps track of all the different signals we use in the program. These structures let us specify the signals and adders we wished to access, create new ones, or delete them. The Variable Time Adder list also contains a flag, which specifies if we want to operate the adders in serial or parallel mode.
The
GUI has basically three main dialogs.

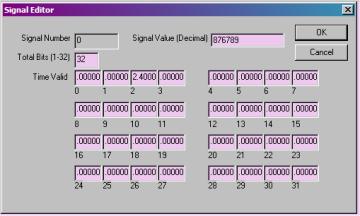

The Signal editor dialog allows for the user to change the value they
want the signal to be, this is input in decimal. The option to change the bit size, and the time each bit becomes
valid is also available.

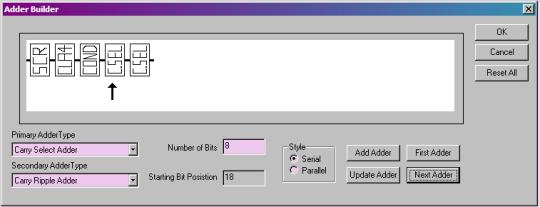

Following the Signal editor dialog, we have a general Adder builder dialog. This adder builder allows for different chains of adders to be created or modified. Here we can specify the Primary Adder Types, and Secondary types, and the number of bits we want this adder module to be. We can also specify the overall behavior of the chain as a serial adder or a parallel one.
The

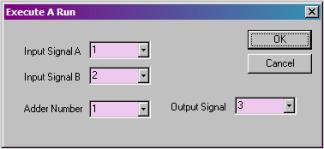

execution dialog is where it all comes together. You can select two previously created signals to feed into an
adder you built previously, and output the resulting signal into an empty
signal you created.
Verification
Since our implementation was broken up into gate level, module level, and system level, our testing also run across the three levels. Extensive testing was performed on the gate level basic blocks unit of one bit full adder; switch full adder, 2 bits carrylookahead and 4 bits carrylookahead. Input signals were set with different delay values, and output carries and sum signals are monitored to make sure delay values are within reasonable value.
On the module level, we generate a list of random number as the operant signals and run it through each of the 8 possible adder type. Carryout delays are monitored as it propagates through each basic block unit to verify the correctness. Each of the 32 bit sum signal are verified to see if the delay is within reasonable bound, and the final sum signal is checked to see if it is the same as the actual addition result.
On the system level relies on the fact that since the adder building blocks are thoroughly tested and the delays value should be correct. Testing is performed by mixing different adder types to build Serial and Parallel variable time adder and monitoring the resulting sum to make sure each adder blocks are connected correctly and no errors are generated.
Evaluation

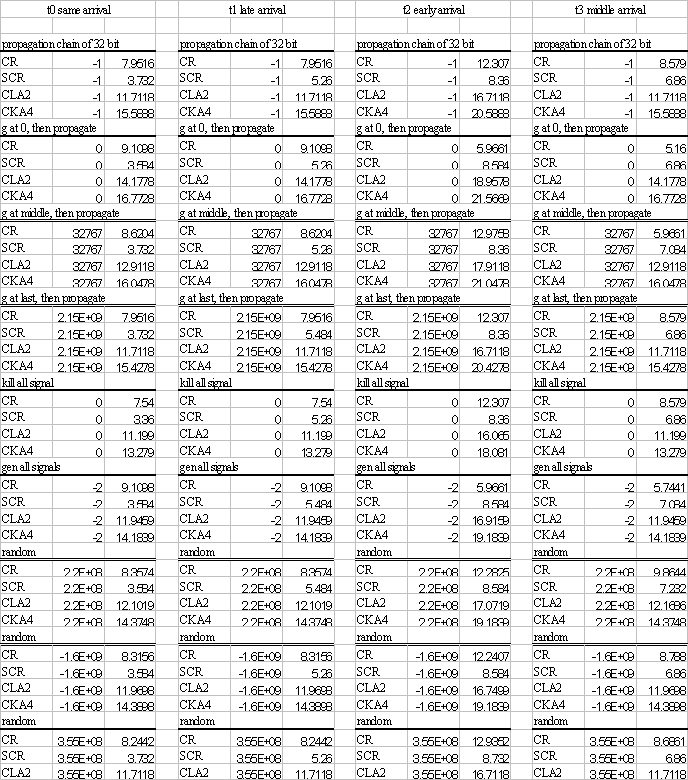

To analyze how input distribution and type affect the delays of different variable time adder designs, we generated different adder designs and model the delay with different input operands of different arrival time distribution. Specifically, the following table listed the input operands used for evaluation.
Operant 1 |
Operant 2 |
Description |
|
-1 |
0 |
propagation chain of 32 bits |
|
-1 |
1 |
g at 0, then propagate |
|
-1 |
32768 |
g at middle, then propagate |
|
-1 |
2147483648 |
g at last bit , then propagate |
|
0 |
0 |
kill all 32 bits |
|
-1 |
-1 |
gen all 32 bits |
|
-2073004001 |
-2002001901 |
random |
|
1254367385 |
1398963295 |
random |
|
2578460 |
352391447 |
random |
|
-1349512601 |
1357364521 |
random |
There are four types of input distribution used in the studies.
The different adder designs we considered in our evaluation and comparison are listed as follow:
|
Serial
Variable Time Adder |
|
Parallel
Variable Time Adder |
||
|
group size |
adder type |
|
|
|
|
0 |
CR (32 bits) |
|
|
|
|
0 |
SCR (32 bits) |
|
|
|
|
2 |
CLA2 |
2 |
CLA2 |
|
|
4 |
CLA4 |
4 |
CLA4 |
|
|
|
|
|||
|
group size of (2,4,8,16) |
CarrySkip (CR) |
group size of (2,4,8,16) |
CarrySkip (CR) |
|
|
CarrySkip (SCR) |
CarrySkip (SCR) |
|||
|
CarrySkip (CLA) |
CarrySkip (CLA) |
|||
|
CarrySelect (CR) |
CarrySelect (CR) |
|||
|
CarrySelect (SCR) |
CarrySelect (SCR) |
|||
|
CarrySelect (CLA) |
CarrySelect (CLA) |
|||
|
ConditionalSum (CR) |
ConditionalSum (CR) |
|||
|
ConditionalSum (SCR) |
ConditionalSum (SCR) |
|||
|
ConditionalSum (CLA) |
ConditionalSum (CLA) |
|||

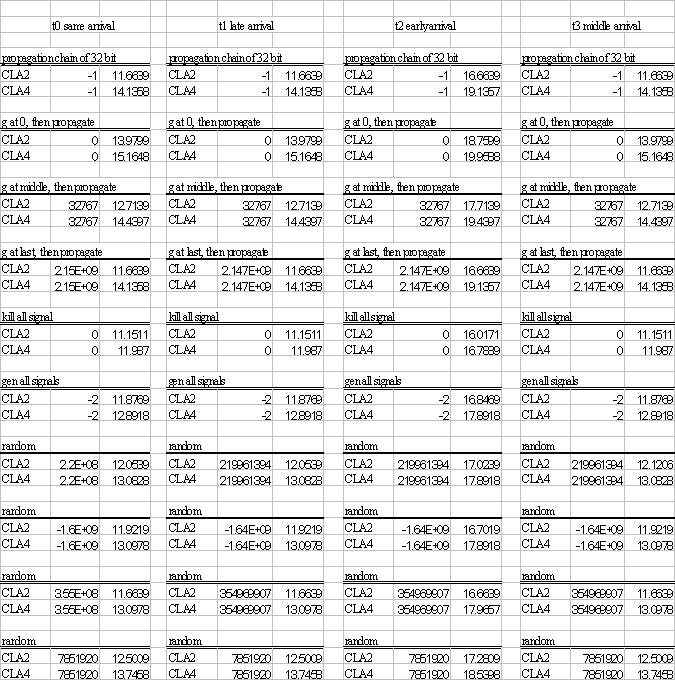

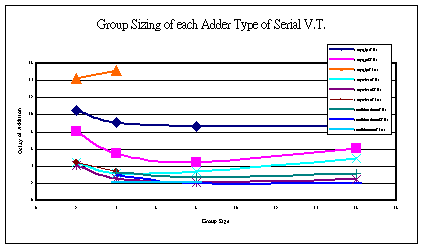

The resulting delay of each combination of input distribution, adder design, and operands are attached in the appendix at the end of the report.
Some interesting observation drawn from the resulting delays numbers:

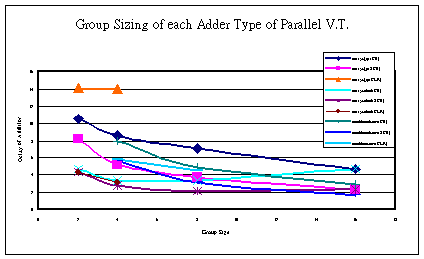

General all adder type shows an improvement in delays with larger group sizing. The only exception is in CLA Serial V.T. because of the complexity of the circuit as explained earlier. It is also true that as in CarrySkip (CR), CarrySkip (SCR), as the group size reaches too big (16), delay actually slightly increased compare to group size of 8 bit. There is an optimal group size for each adder design.
1. Serial Variable Time Adder
a) Late arrival:
CarrySkip adders are not affected by late arrival input as expected. CarrySelect adders delay increase by roughly 1ns and Conditional sum adders delay increase by ~3ns because of faster addition and have to wait for input.
b) Early arrival:
This distribution increase delays across all adder type. And the effects of the delay are the same for all.
c) Middle arrival:
This distribution slightly increase the delay of CarrySkip adders be drastically increase the delay in CarrySelect and Conditional sum. This is mostly due to the fact that since input for the middle operands have not arrived, calculation of sum cannot proceed even though all sum calculation performs in parallel. With this distribution lessen the delay gap between CarrySkip type and CarrySelect/Condition sum type to only 2ns in worse case.
2. Parallel Variable Time Adder
a) Late arrival:
There are no affects in delay number for all adder type.
b) Early arrival:
This distribution increase delays across all adder type. And the effects of the delay are higher in Conditional Sum adder. It lessens the performance gap between CarrySkip and Conditional Sum.
c) Middle arrival:
This distribution slightly increases the delay of CarrySkip adders and CarrySelect adders but drastically increase the delay in and Conditional sum. This is mostly due to the fact that since input for the middle operands have not arrived, calculation of sum cannot proceed even though all sum calculation performs in parallel. With this distribution lessen the delay gap between CarrySkip, CarrySelect, with Condition sum type. In many instance of random number operant, the delay performance is actually much better in CarrySkip and Carry Select than Conditional sum for small group size (2-8 bits). On average the delays of addition is the same across the three types of group adder for large group size (16 bits).
Conclusion
Our Variable time adder-modeling tool basically allow user to build an arbitrary design and get the resulting delay number of all signals. It is an easy tool that can be use to find the best adder design for a given input parameters. In our analysis we demonstrate and studies some delay numbers generated from different adder designs.
For improvements on our system, we can expand features like multi-level grouping to allow tree like adders. We can include other basic adder types to be used in each level. The GUI currently assumes the user inputs data correctly and does not perform error checking, so another improvement is to add in error checking for the adder design. A nice feature to add would be file input and output to allow users to save and load signals and adder designs. We can also calculate the costs of the circuit in terms of area. And we can try to dynamically generate different gate level circuits using the gate simulator. For example we can generate the CLA adder dynamically enabling us to create variable bit CLA groups.
Reference
1. COMS 252A Digital Arithmetic. M. Ercegovac & T. Lang. December 2002.
Appendix A: Table of Data for all Test cases of Serial
Variable Time Adder.
|
|
t0
same arrival |
|
|
|
|
t1
late arrival |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
propagation
chain of 32 bit |
|
|
|
propagation
chain of 32 bit |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
11.3256 |
6.7836 |
4.2274 |
2.4539 |
|
carryskip(CR) |
26.3256 |
15.7836 |
10.2274 |
7.4539 |
|
carryskip(SCR) |
11.3256 |
6.7836 |
4.2274 |
2.4539 |
|
carryskip(SCR) |
26.3256 |
15.7836 |
10.2274 |
7.4539 |
|
carryskip(CLA) |
11.3856 |
6.8136 |
|
|
|
carryskip(CLA) |
26.3856 |
15.8136 |
|
|
|
carryselect(CR) |
4.4136 |
3.1852 |
3.2721 |
4.7111 |
|
carryselect(CR) |
5.435 |
5.435 |
5.435 |
5.435 |
|
carryselect(SCR) |
4.157 |
2.677 |
2.237 |
2.617 |
|
carryselect(SCR) |
5.535 |
5.535 |
5.535 |
5.535 |
|
carryselect(CLA) |
4.2318 |
3.2858 |
|
|
|
carryselect(CLA) |
6.0458 |
6.3838 |
|
|
|
condsum(CR) |
|
3.1616 |
2.6276 |
3.0596 |
|
condsum(CR) |
|
5.61 |
5.61 |
5.61 |
|
condsum(SCR) |
|
2.932 |
2.132 |
2.032 |
|
condsum(SCR) |
|
5.71 |
5.71 |
5.71 |
|
condsum(CLA) |
|
0.8068 |
1.5408 |
|
|
condsum(CLA) |
|
5.7708 |
6.1088 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at 0, then propagate |
|
|
|
|
g
at 0, then propagate |
|
|
||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
11.5436 |
7.42105 |
5.77515 |
6.06995 |
|
carryskip(CR) |
26.5436 |
16.4211 |
11.7752 |
11.07 |
|
carryskip(SCR) |
11.2618 |
6.78965 |
4.44455 |
3.34095 |
|
carryskip(SCR) |
26.2618 |
15.7897 |
10.4446 |
8.34095 |
|
carryskip(CLA) |
11.8243 |
7.7392 |
|
|
|
carryskip(CLA) |
26.8243 |
16.7392 |
|
|
|
carryselect(CR) |
4.3754 |
3.245 |
3.5042 |
5.2826 |
|
carryselect(CR) |
5.435 |
5.435 |
5.435 |
5.435 |
|
carryselect(SCR) |
4.009 |
2.529 |
2.089 |
2.469 |
|
carryselect(SCR) |
5.535 |
5.535 |
5.535 |
5.535 |
|
carryselect(CLA) |
4.51155 |
3.44855 |
|
|
|
carryselect(CLA) |
6.22855 |
6.60255 |
|
|
|
condsum(CR) |
|
3.3604 |
2.91 |
3.5092 |
|
condsum(CR) |
|
5.61 |
5.61 |
5.61 |
|
condsum(SCR) |
|
2.932 |
2.132 |
2.032 |
|
condsum(SCR) |
|
5.71 |
5.71 |
5.71 |
|
condsum(CLA) |
|
3.36155 |
3.03455 |
|
|
condsum(CLA) |
|
6.47855 |
6.85255 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at middle, then propagate |
|
|
|
g
at middle, then propagate |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
11.2278 |
7.02165 |
5.20855 |
5.58055 |
|
carryskip(CR) |
26.2278 |
16.0217 |
11.2086 |
10.5806 |
|
carryskip(SCR) |
11.0378 |
6.56565 |
4.22055 |
3.48895 |
|
carryskip(SCR) |
26.0378 |
15.5657 |
10.2206 |
8.48895 |
|
carryskip(CLA) |
11.6205 |
8.0324 |
|
|
|
carryskip(CLA) |
26.6205 |
17.0324 |
|
|
|
carryselect(CR) |
4.3992 |
3.178 |
3.2942 |
5.2826 |
|
carryselect(CR) |
5.435 |
5.435 |
5.435 |
5.435 |
|
carryselect(SCR) |
4.157 |
2.677 |
2.237 |
2.617 |
|
carryselect(SCR) |
5.535 |
5.535 |
5.535 |
5.535 |
|
carryselect(CLA) |
4.2318 |
3.2858 |
|
|
|
carryselect(CLA) |
6.22855 |
6.60255 |
|
|
|
condsum(CR) |
|
3.1616 |
2.6276 |
3.2592 |
|
condsum(CR) |
|
5.61 |
5.61 |
5.61 |
|
condsum(SCR) |
|
2.932 |
2.132 |
2.032 |
|
condsum(SCR) |
|
5.71 |
5.71 |
5.71 |
|
condsum(CLA) |
|
2.42155 |
2.53455 |
|
|
condsum(CLA) |
|
6.47855 |
6.85255 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at last, then propagate |
|
|
|
|
g
at last, then propagate |
|
|
||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
11.0378 |
7.02165 |
5.20855 |
5.16895 |
|
carryskip(CR) |
21.2278 |
11.0216 |
6.20855 |
5.7851 |
|
carryskip(SCR) |
11.6205 |
6.56565 |
4.22055 |
5.16895 |
|
carryskip(SCR) |
21.0378 |
10.5656 |
5.694 |
5.7851 |
|
carryskip(CLA) |
4.4136 |
8.0324 |
|
|
|
carryskip(CLA) |
21.6205 |
12.0324 |
|
|
|
carryselect(CR) |
4.157 |
3.1852 |
3.2721 |
4.7111 |
|
carryselect(CR) |
5.8501 |
5.8501 |
5.8501 |
5.8501 |
|
carryselect(SCR) |
4.2318 |
2.677 |
2.237 |
2.617 |
|
carryselect(SCR) |
5.759 |
5.759 |
5.759 |
5.759 |
|
carryselect(CLA) |
|
3.2858 |
|
|
|
carryselect(CLA) |
6.0646 |
6.16355 |
|
|
|
condsum(CR) |
|
3.1616 |
2.6276 |
3.0596 |
|
condsum(CR) |
|
6.0251 |
6.0251 |
6.0251 |
|
condsum(SCR) |
|
2.932 |
2.132 |
2.032 |
|
condsum(SCR) |
|
5.934 |
5.934 |
5.934 |
|
condsum(CLA) |
|
1.42155 |
1.9908 |
|
|
condsum(CLA) |
|
6.3146 |
6.41355 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
kill
all signal |
|
|
|
|
|
kill
all signal |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
9.76 |
8.688 |
8.152 |
7.884 |
|
carryskip(CR) |
9.76 |
8.688 |
8.152 |
7.884 |
|
carryskip(SCR) |
6.72 |
5.04 |
4.2 |
5.832 |
|
carryskip(SCR) |
6.72 |
5.47 |
5.47 |
5.832 |
|
carryskip(CLA) |
14.619 |
14.989 |
|
|
|
carryskip(CLA) |
14.619 |
14.989 |
|
|
|
carryselect(CR) |
3.975 |
2.761 |
2.853 |
4.297 |
|
carryselect(CR) |
5.435 |
5.435 |
5.435 |
5.435 |
|
carryselect(SCR) |
3.785 |
2.305 |
1.865 |
2.245 |
|
carryselect(SCR) |
5.535 |
5.535 |
5.535 |
5.535 |
|
carryselect(CLA) |
3.585 |
1.905 |
|
|
|
carryselect(CLA) |
5.435 |
5.435 |
|
|
|
condsum(CR) |
|
2.75 |
2.216 |
2.648 |
|
condsum(CR) |
|
5.61 |
5.61 |
5.61 |
|
condsum(SCR) |
|
2.56 |
1.76 |
1.66 |
|
condsum(SCR) |
|
5.71 |
5.71 |
5.71 |
|
condsum(CLA) |
|
0.16 |
0.16 |
|
|
condsum(CLA) |
|
5.16 |
5.16 |
|
|
|
gen
all signals |
|
|
|
|
gen
all signals |
|
|
|||||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
10.7028 |
9.9652 |
9.5964 |
9.412 |
|
carryskip(CR) |
10.7028 |
9.9652 |
9.5964 |
9.412 |
|||||||
|
carryskip(SCR) |
6.944 |
5.264 |
4.424 |
2.404 |
|
carryskip(SCR) |
6.944 |
5.694 |
5.694 |
5.4541 |
|||||||
|
carryskip(CLA) |
15.3658 |
15.8939 |
|
|
|
carryskip(CLA) |
15.3658 |
15.8939 |
|
|
|||||||
|
carryselect(CR) |
4.3178 |
3.173 |
3.4271 |
5.2005 |
|
carryselect(CR) |
5.5191 |
5.5191 |
5.5191 |
5.8001 |
|||||||
|
carryselect(SCR) |
4.009 |
2.529 |
2.089 |
2.469 |
|
carryselect(SCR) |
5.759 |
5.759 |
5.759 |
5.759 |
|||||||
|
carryselect(CLA) |
4.2146 |
3.0716 |
|
|
|
carryselect(CLA) |
6.0646 |
6.1136 |
|
|
|||||||
|
condsum(CR) |
|
3.1728 |
2.7224 |
3.3216 |
|
condsum(CR) |
|
5.6941 |
5.6941 |
5.6941 |
|||||||
|
condsum(SCR) |
|
2.784 |
1.984 |
1.884 |
|
condsum(SCR) |
|
5.934 |
5.934 |
5.934 |
|||||||
|
condsum(CLA) |
|
3.0646 |
2.6016 |
|
|
condsum(CLA) |
|
6.3146 |
6.3636 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
random |
|
|
|
|
|
random |
|
|
|
|||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
10.5508 |
9.38 |
8.8858 |
8.6596 |
|
carryskip(CR) |
14.5508 |
9.38 |
8.8858 |
8.6596 |
|||||||
|
carryskip(SCR) |
8.0954 |
5.264 |
4.424 |
5.4824 |
|
carryskip(SCR) |
12.0954 |
5.694 |
5.694 |
5.7851 |
|||||||
|
carryskip(CLA) |
14.1323 |
16.0848 |
|
|
|
carryskip(CLA) |
18.1322 |
16.0848 |
|
|
|||||||
|
carryselect(CR) |
4.388 |
3.1676 |
3.3385 |
4.8646 |
|
carryselect(CR) |
5.8501 |
5.8501 |
5.8501 |
5.8501 |
|||||||
|
carryselect(SCR) |
4.009 |
2.529 |
2.089 |
2.469 |
|
carryselect(SCR) |
5.759 |
5.759 |
5.759 |
5.759 |
|||||||
|
carryselect(CLA) |
4.2596 |
3.26255 |
|
|
|
carryselect(CLA) |
6.0646 |
6.1136 |
|
|
|||||||
|
condsum(CR) |
|
3.3604 |
2.6388 |
3.1338 |
|
condsum(CR) |
|
6.0251 |
6.0251 |
6.0251 |
|||||||
|
condsum(SCR) |
|
2.932 |
1.984 |
1.884 |
|
condsum(SCR) |
|
5.934 |
5.934 |
5.934 |
|||||||
|
condsum(CLA) |
|
2.30055 |
2.42555 |
|
|
condsum(CLA) |
|
6.3146 |
6.3636 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
random |
|
|
|
|
|
random |
|
|
|
|||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
10.5223 |
9.38 |
8.8858 |
8.6596 |
|
carryskip(CR) |
10.5223 |
9.38 |
8.8858 |
8.6596 |
|||||||
|
carryskip(SCR) |
7.5197 |
5.264 |
4.424 |
6.265 |
|
carryskip(SCR) |
7.5197 |
5.47 |
5.47 |
6.265 |
|||||||
|
carryskip(CLA) |
14.92 |
16.0998 |
|
|
|
carryskip(CLA) |
14.92 |
16.0998 |
|
|
|||||||
|
carryselect(CR) |
4.388 |
3.1658 |
3.336 |
4.8636 |
|
carryselect(CR) |
5.7411 |
5.7411 |
5.7411 |
5.7411 |
|||||||
|
carryselect(SCR) |
4.009 |
2.529 |
2.089 |
2.469 |
|
carryselect(SCR) |
5.535 |
5.535 |
5.535 |
5.535 |
|||||||
|
carryselect(CLA) |
4.51155 |
3.3576 |
|
|
|
carryselect(CLA) |
5.435 |
5.435 |
|
|
|||||||
|
condsum(CR) |
|
3.3604 |
2.6388 |
3.131 |
|
condsum(CR) |
|
5.9161 |
5.9161 |
5.9161 |
|||||||
|
condsum(SCR) |
|
2.932 |
1.984 |
1.884 |
|
condsum(SCR) |
|
5.71 |
5.71 |
5.71 |
|||||||
|
condsum(CLA) |
|
1.91155 |
2.10755 |
|
|
condsum(CLA) |
|
5.16 |
5.16 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
random |
|
|
|
|
|
random |
|
|
|
|||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
10.0669 |
9.3504 |
8.8562 |
8.5882 |
|
carryskip(CR) |
10.0669 |
9.3504 |
8.8562 |
8.5882 |
|||||||
|
carryskip(SCR) |
7.00785 |
5.412 |
4.572 |
6.3294 |
|
carryskip(SCR) |
7.00785 |
5.47 |
5.47 |
6.3294 |
|||||||
|
carryskip(CLA) |
14.9091 |
16.0998 |
|
|
|
carryskip(CLA) |
14.9091 |
16.0998 |
|
|
|||||||
|
carryselect(CR) |
4.3974 |
3.2216 |
3.395 |
4.8758 |
|
carryselect(CR) |
5.435 |
5.435 |
5.435 |
5.435 |
|||||||
|
carryselect(SCR) |
4.157 |
2.677 |
2.237 |
2.617 |
|
carryselect(SCR) |
5.535 |
5.535 |
5.535 |
5.535 |
|||||||
|
carryselect(CLA) |
4.30155 |
3.3576 |
|
|
|
carryselect(CLA) |
5.435 |
5.435 |
|
|
|||||||
|
condsum(CR) |
|
3.1616 |
2.6694 |
3.185 |
|
condsum(CR) |
|
5.61 |
5.61 |
5.61 |
|||||||
|
condsum(SCR) |
|
2.932 |
2.132 |
2.032 |
|
condsum(SCR) |
|
5.71 |
5.71 |
5.71 |
|||||||
|
condsum(CLA) |
|
1.66155 |
1.60755 |
|
|
condsum(CLA) |
|
5.16 |
5.16 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
random |
|
|
|
|
|
random |
|
|
|
|||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
11.0401 |
8.54045 |
7.77925 |
8.8268 |
|
carryskip(CR) |
25.0401 |
16.5405 |
12.7793 |
8.8268 |
|||||||
|
carryskip(SCR) |
9.53465 |
5.91785 |
4.43085 |
6.3904 |
|
carryskip(SCR) |
23.5347 |
13.9179 |
9.43085 |
6.3904 |
|||||||
|
carryskip(CLA) |
13.2547 |
12.6144 |
|
|
|
carryskip(CLA) |
27.2547 |
20.6144 |
|
|
|||||||
|
carryselect(CR) |
4.3898 |
3.1676 |
3.3828 |
4.9079 |
|
carryselect(CR) |
5.9354 |
5.435 |
5.435 |
5.435 |
|||||||
|
carryselect(SCR) |
4.009 |
2.529 |
2.089 |
2.469 |
|
carryselect(SCR) |
5.535 |
5.535 |
5.535 |
5.535 |
|||||||
|
carryselect(CLA) |
4.51155 |
3.44855 |
|
|
|
carryselect(CLA) |
6.22855 |
6.60255 |
|
|
|||||||
|
condsum(CR) |
|
3.3604 |
2.6154 |
3.2592 |
|
condsum(CR) |
|
6.1104 |
5.61 |
5.61 |
|||||||
|
condsum(SCR) |
|
2.932 |
1.984 |
2.032 |
|
condsum(SCR) |
|
5.71 |
5.71 |
5.71 |
|||||||
|
condsum(CLA) |
|
2.36155 |
2.30755 |
|
|
condsum(CLA) |
|
6.47855 |
6.85255 |
|
|||||||
|
|
t2
early arrival |
|
|
|
|
t3
middle arrival |
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
propagation
chain of 32 bit |
|
|
|
propagation
chain of 32 bit |
|
|||||||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
26.3256 |
15.7836 |
10.2274 |
7.4539 |
|
carryskip(CR) |
29.3256 |
18.7836 |
14.2274 |
12.4539 |
|||||||
|
carryskip(SCR) |
26.3256 |
15.7836 |
10.2274 |
7.4539 |
|
carryskip(SCR) |
29.3256 |
18.7836 |
14.2274 |
12.4539 |
|||||||
|
carryskip(CLA) |
26.3856 |
15.8136 |
|
|
|
carryskip(CLA) |
29.3856 |
18.8136 |
|
|
|||||||
|
carryselect(CR) |
8.769 |
7.5406 |
7.6275 |
9.0665 |
|
carryselect(CR) |
7.1294 |
6.6934 |
7.2025 |
8.854 |
|||||||
|
carryselect(SCR) |
8.785 |
7.305 |
6.865 |
7.245 |
|
carryselect(SCR) |
7.215 |
6.465 |
6.445 |
7.035 |
|||||||
|
carryselect(CLA) |
9.2318 |
8.2858 |
|
|
|
carryselect(CLA) |
7.7258 |
7.4458 |
|
|
|||||||
|
condsum(CR) |
|
7.517 |
6.983 |
7.415 |
|
condsum(CR) |
|
6.61 |
6.483 |
|
|||||||
|
condsum(SCR) |
|
7.56 |
6.76 |
6.66 |
|
condsum(SCR) |
|
6.71 |
6.26 |
7.165 |
|||||||
|
condsum(CLA) |
|
5.8068 |
6.5408 |
|
|
condsum(CLA) |
|
5.8068 |
6.5408 |
6.41 |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
g
at 0, then propagate |
|
|
|
|
g
at 0, then propagate |
|
|
|||||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
26.6439 |
15.9718 |
10.2267 |
7.32305 |
|
carryskip(CR) |
29.5436 |
19.4211 |
15.7752 |
11.517 |
|||||||
|
carryskip(SCR) |
26.2618 |
15.7897 |
10.4446 |
8.34095 |
|
carryskip(SCR) |
29.2618 |
18.7897 |
14.4446 |
11.6169 |
|||||||
|
carryskip(CLA) |
26.6044 |
16.5332 |
|
|
|
carryskip(CLA) |
29.8243 |
19.7392 |
|
|
|||||||
|
carryselect(CR) |
9.3911 |
7.7111 |
6.8711 |
6.4511 |
|
carryselect(CR) |
7.115 |
6.275 |
5.855 |
5.645 |
|||||||
|
carryselect(SCR) |
9.009 |
7.529 |
7.089 |
7.469 |
|
carryselect(SCR) |
7.215 |
6.465 |
6.445 |
7.035 |
|||||||
|
carryselect(CLA) |
9.2916 |
8.2426 |
|
|
|
carryselect(CLA) |
7.9996 |
7.66455 |
|
|
|||||||
|
condsum(CR) |
|
8.1661 |
7.1661 |
6.6661 |
|
condsum(CR) |
|
6.61 |
6.11 |
5.86 |
|||||||
|
condsum(SCR) |
|
7.784 |
6.984 |
6.884 |
|
condsum(SCR) |
|
6.71 |
6.26 |
6.41 |
|||||||
|
condsum(CLA) |
|
8.1416 |
7.7726 |
|
|
condsum(CLA) |
|
7.47855 |
7.53455 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
g
at middle, then propagate |
|
|
|
g
at middle, then propagate |
|
|||||||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
26.2278 |
16.0217 |
10.2086 |
9.93595 |
|
carryskip(CR) |
24.2278 |
15.0969 |
12.8188 |
11.9321 |
|||||||
|
carryskip(SCR) |
26.0378 |
15.5657 |
9.22055 |
8.11695 |
|
carryskip(SCR) |
24.0378 |
15.0058 |
12.7277 |
11.8409 |
|||||||
|
carryskip(CLA) |
26.6205 |
17.0324 |
|
|
|
carryskip(CLA) |
24.6205 |
15.3791 |
|
|
|||||||
|
carryselect(CR) |
8.7546 |
7.5334 |
7.6225 |
9.064 |
|
carryselect(CR) |
7.8671 |
7.0271 |
6.6071 |
6.3971 |
|||||||
|
carryselect(SCR) |
8.785 |
7.305 |
6.865 |
7.245 |
|
carryselect(SCR) |
7.439 |
6.599 |
6.445 |
7.035 |
|||||||
|
carryselect(CLA) |
9.2318 |
8.2858 |
|
|
|
carryselect(CLA) |
7.77055 |
7.66455 |
|
|
|||||||
|
condsum(CR) |
|
7.517 |
6.983 |
7.415 |
|
condsum(CR) |
|
7.0251 |
6.5251 |
6.2751 |
|||||||
|
condsum(SCR) |
|
7.56 |
6.76 |
6.66 |
|
condsum(SCR) |
|
6.934 |
6.434 |
6.41 |
|||||||
|
condsum(CLA) |
|
7.0068 |
7.2408 |
|
|
condsum(CLA) |
|
7.3146 |
7.53455 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
g
at last, then propagate |
|
|
|
|
g
at last, then propagate |
|
|
|||||||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|||||||
|
carryskip(CR) |
26.2278 |
16.0217 |
11.2085 |
10.1689 |
|
carryskip(CR) |
29.2278 |
19.0217 |
15.2085 |
10.1689 |
|||||||
|
carryskip(SCR) |
26.0378 |
15.5657 |
10.2205 |
10.1689 |
|
carryskip(SCR) |
29.0378 |
18.5657 |
14.2205 |
10.1689 |
|||||||
|
carryskip(CLA) |
26.6205 |
17.0324 |
|
|
|
carryskip(CLA) |
29.6205 |
20.0324 |
|
|
|||||||
|
carryselect(CR) |
8.769 |
7.5406 |
7.6275 |
9.0665 |
|
carryselect(CR) |
7.1294 |
6.6934 |
7.2025 |
8.854 |
|||||||
|
carryselect(SCR) |
8.785 |
7.305 |
6.865 |
7.245 |
|
carryselect(SCR) |
7.215 |
6.465 |
6.445 |
7.035 |
|||||||
|
carryselect(CLA) |
9.2318 |
8.2858 |
|
|
|
carryselect(CLA) |
7.7258 |
7.4458 |
|
|
|||||||
|
condsum(CR) |
|
7.517 |
6.983 |
7.415 |
|
condsum(CR) |
|
6.61 |
6.483 |
7.165 |
|||||||
|
condsum(SCR) |
|
7.56 |
6.76 |
6.66 |
|
condsum(SCR) |
|
6.71 |
6.26 |
6.41 |
|||||||
|
condsum(CLA) |
|
6.0068 |
6.7408 |
|
|
condsum(CLA) |
|
6.0068 |
6.7408 |
|
|||||||
|
|
kill
all signal |
|
|
|
|
kill
all signal |
|
|
||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
14.527 |
13.455 |
12.919 |
12.651 |
|
carryskip(CR) |
10.17 |
9.634 |
9.366 |
9.232 |
|
carryskip(SCR) |
11.72 |
10.04 |
9.2 |
10.832 |
|
carryskip(SCR) |
8.75 |
7.91 |
7.49 |
9.332 |
|
carryskip(CLA) |
19.485 |
19.791 |
|
|
|
carryskip(CLA) |
14.619 |
14.989 |
|
|
|
carryselect(CR) |
8.742 |
7.528 |
7.62 |
9.064 |
|
carryselect(CR) |
7.115 |
6.688 |
7.2 |
8.854 |
|
carryselect(SCR) |
8.785 |
7.305 |
6.865 |
7.245 |
|
carryselect(SCR) |
7.215 |
6.465 |
6.445 |
7.035 |
|
carryselect(CLA) |
8.585 |
6.905 |
|
|
|
carryselect(CLA) |
7.115 |
6.275 |
|
|
|
condsum(CR) |
|
7.517 |
6.983 |
7.415 |
|
condsum(CR) |
|
6.61 |
6.483 |
7.165 |
|
condsum(SCR) |
|
7.56 |
6.76 |
6.66 |
|
condsum(SCR) |
|
6.71 |
6.26 |
6.41 |
|
condsum(CLA) |
|
5.16 |
5.16 |
|
|
condsum(CLA) |
|
5.16 |
5.16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
gen
all signals |
|
|
|
|
gen
all signals |
|
|
||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
9.3261 |
7.6461 |
6.8061 |
6.3861 |
|
carryskip(CR) |
10.7028 |
6.7941 |
6.3741 |
6.1641 |
|
carryskip(SCR) |
11.944 |
10.264 |
9.424 |
7.404 |
|
carryskip(SCR) |
8.974 |
8.134 |
7.714 |
5.904 |
|
carryskip(CLA) |
20.3358 |
20.8938 |
|
|
|
carryskip(CLA) |
15.3658 |
15.8939 |
|
|
|
carryselect(CR) |
9.4181 |
7.7237 |
6.8786 |
6.4536 |
|
carryselect(CR) |
7.7135 |
6.8663 |
6.4441 |
6.2316 |
|
carryselect(SCR) |
9.009 |
7.529 |
7.089 |
7.469 |
|
carryselect(SCR) |
7.439 |
6.689 |
6.669 |
7.259 |
|
carryselect(CLA) |
9.1846 |
8.0716 |
|
|
|
carryselect(CLA) |
7.7446 |
7.2316 |
|
|
|
condsum(CR) |
|
8.1661 |
7.1661 |
6.6661 |
|
condsum(CR) |
|
6.9751 |
6.4751 |
6.2251 |
|
condsum(SCR) |
|
7.784 |
6.984 |
6.884 |
|
condsum(SCR) |
|
6.934 |
6.484 |
6.634 |
|
condsum(CLA) |
|
8.0346 |
7.6016 |
|
|
condsum(CLA) |
|
7.3146 |
7.1016 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
19.2193 |
13.4229 |
12.8109 |
12.5847 |
|
carryskip(CR) |
16.1891 |
10.5268 |
10.2588 |
10.1666 |
|
carryskip(SCR) |
17.0954 |
10.264 |
9.424 |
10.4824 |
|
carryskip(SCR) |
14.9856 |
8.282 |
7.862 |
9.1304 |
|
carryskip(CLA) |
23.1023 |
20.8938 |
|
|
|
carryskip(CLA) |
19.1323 |
16.0848 |
|
|
|
carryselect(CR) |
9.4037 |
7.7183 |
7.2636 |
8.7887 |
|
carryselect(CR) |
7.9126 |
7.5768 |
8.1713 |
9.8646 |
|
carryselect(SCR) |
9.009 |
7.529 |
7.089 |
7.469 |
|
carryselect(SCR) |
7.587 |
6.837 |
6.817 |
7.407 |
|
carryselect(CLA) |
9.1846 |
8.0716 |
|
|
|
carryselect(CLA) |
8.04155 |
7.39455 |
|
|
|
condsum(CR) |
|
8.1661 |
7.1661 |
7.0561 |
|
condsum(CR) |
|
7.3604 |
7.3682 |
8.1338 |
|
condsum(SCR) |
|
7.784 |
6.984 |
6.884 |
|
condsum(SCR) |
|
7.082 |
6.632 |
6.782 |
|
condsum(CLA) |
|
7.0346 |
7.1016 |
|
|
condsum(CLA) |
|
7.11155 |
7.30455 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
16.759 |
13.4229 |
12.8109 |
12.5847 |
|
carryskip(CR) |
11.5223 |
9.8012 |
9.5332 |
9.441 |
|
carryskip(SCR) |
14.5197 |
10.264 |
9.424 |
11.265 |
|
carryskip(SCR) |
8.75 |
7.91 |
7.49 |
9.541 |
|
carryskip(CLA) |
21.7 |
20.8938 |
|
|
|
carryskip(CLA) |
15.92 |
16.0998 |
|
|
|
carryselect(CR) |
9.4037 |
7.7165 |
7.2611 |
8.7887 |
|
carryselect(CR) |
7.1204 |
6.6898 |
7.2418 |
9.063 |
|
carryselect(SCR) |
9.009 |
7.529 |
7.089 |
7.469 |
|
carryselect(SCR) |
7.215 |
6.465 |
6.445 |
7.035 |
|
carryselect(CLA) |
9.2916 |
8.0716 |
|
|
|
carryselect(CLA) |
7.115 |
6.275 |
|
|
|
condsum(CR) |
|
8.1661 |
7.1661 |
7.0561 |
|
condsum(CR) |
|
6.61 |
6.483 |
7.2068 |
|
condsum(SCR) |
|
7.784 |
6.984 |
6.884 |
|
condsum(SCR) |
|
6.71 |
6.26 |
6.41 |
|
condsum(CLA) |
|
6.6916 |
6.6516 |
|
|
condsum(CLA) |
|
5.517 |
5.66 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
15.0668 |
14.0414 |
13.5472 |
13.2792 |
|
carryskip(CR) |
10.2536 |
9.7594 |
9.4914 |
9.3574 |
|
carryskip(SCR) |
12.0078 |
10.412 |
9.572 |
11.3294 |
|
carryskip(SCR) |
8.75 |
7.91 |
7.49 |
9.4574 |
|
carryskip(CLA) |
19.9091 |
20.9678 |
|
|
|
carryskip(CLA) |
14.9091 |
16.0998 |
|
|
|
carryselect(CR) |
9.1644 |
7.9126 |
8.086 |
9.5668 |
|
carryselect(CR) |
7.7165 |
6.8747 |
7.3096 |
8.9611 |
|
carryselect(SCR) |
9.157 |
7.677 |
7.237 |
7.617 |
|
carryselect(SCR) |
7.329 |
6.689 |
6.669 |
7.259 |
|
carryselect(CLA) |
9.2318 |
8.2006 |
|
|
|
carryselect(CLA) |
7.6116 |
6.80885 |
|
|
|
condsum(CR) |
|
7.9286 |
7.3604 |
7.876 |
|
condsum(CR) |
|
7.1661 |
6.6661 |
7.2721 |
|
condsum(SCR) |
|
7.932 |
7.132 |
7.032 |
|
condsum(SCR) |
|
6.784 |
6.484 |
6.634 |
|
condsum(CLA) |
|
6.3068 |
6.47555 |
|
|
condsum(CLA) |
|
5.9416 |
5.5188 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
20.9074 |
13.8581 |
11.9791 |
13.0267 |
|
carryskip(CR) |
18.0401 |
9.54045 |
8.72045 |
9.902 |
|
carryskip(SCR) |
19.5347 |
11.9178 |
9.43085 |
11.3904 |
|
carryskip(SCR) |
16.5347 |
8.7179 |
7.86885 |
10.0384 |
|
carryskip(CLA) |
23.0348 |
18.4085 |
|
|
|
carryskip(CLA) |
20.2547 |
13.6144 |
|
|
|
carryselect(CR) |
9.4055 |
7.7183 |
7.5827 |
9.1078 |
|
carryselect(CR) |
7.6908 |
7.0254 |
7.5356 |
9.524 |
|
carryselect(SCR) |
9.009 |
7.529 |
7.089 |
7.469 |
|
carryselect(SCR) |
7.587 |
6.837 |
6.817 |
7.407 |
|
carryselect(CLA) |
9.2916 |
8.2426 |
|
|
|
carryselect(CLA) |
7.6678 |
7.0868 |
|
|
|
condsum(CR) |
|
8.1661 |
7.1661 |
7.3727 |
|
condsum(CR) |
|
7.0216 |
6.8186 |
7.5006 |
|
condsum(SCR) |
|
7.784 |
6.984 |
6.884 |
|
condsum(SCR) |
|
7.082 |
6.632 |
6.782 |
|
condsum(CLA) |
|
7.1416 |
7.0226 |
|
|
condsum(CLA) |
|
6.5068 |
6.8818 |
|
Appendix B: Table of Data for all Test cases of
Parallel Variable Time Adder.
|
|
t0
same arrival |
|
|
|
|
t1
late arrival |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
propagation
chain of 32 bit |
|
|
|
propagation
chain of 32 bit |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
11.2276 |
6.42535 |
3.49135 |
1.45765 |
|
carryskip(CR) |
21.2275 |
10.4254 |
4.49135 |
1.45765 |
|
carryskip(SCR) |
11.2276 |
6.42535 |
3.49135 |
1.45765 |
|
carryskip(SCR) |
21.2275 |
10.4254 |
4.49135 |
1.45765 |
|
carryskip(CLA) |
11.3588 |
6.5266 |
|
|
|
carryskip(CLA) |
21.3588 |
10.5266 |
|
|
|
carryselect(CR) |
4.7384 |
3.3799 |
3.2758 |
4.5861 |
|
carryselect(CR) |
4.9716 |
3.8415 |
3.2758 |
4.5861 |
|
carryselect(SCR) |
4.4818 |
2.8717 |
2.2428 |
2.4927 |
|
carryselect(SCR) |
5.0698 |
3.9397 |
2.2428 |
2.4927 |
|
carryselect(CLA) |
4.07875 |
3.00265 |
|
|
|
carryselect(CLA) |
5.10275 |
4.31065 |
|
|
|
condsum(CR) |
|
7.6909 |
4.8936 |
2.7603 |
|
condsum(CR) |
|
10.0877 |
4.8936 |
2.7603 |
|
condsum(SCR) |
|
6.0837 |
3.4068 |
1.7327 |
|
condsum(SCR) |
|
9.1397 |
3.7348 |
1.7327 |
|
condsum(CLA) |
|
4.67945 |
4.42435 |
|
|
condsum(CLA) |
|
8.60745 |
4.99235 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at 0, then propagate |
|
|
|
g
at 0, then propagate |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
11.4455 |
7.0628 |
5.0391 |
5.0737 |
|
carryskip(CR) |
21.4455 |
11.0628 |
6.0391 |
5.0737 |
|
carryskip(SCR) |
11.1637 |
6.4314 |
3.7085 |
2.3447 |
|
carryskip(SCR) |
21.1637 |
10.4314 |
4.7085 |
2.3447 |
|
carryskip(CLA) |
11.7975 |
7.4522 |
|
|
|
carryskip(CLA) |
21.7975 |
11.4522 |
|
|
|
carryselect(CR) |
4.7002 |
3.4397 |
3.5121 |
5.07475 |
|
carryselect(CR) |
4.9698 |
3.8397 |
3.5121 |
5.07475 |
|
carryselect(SCR) |
4.3338 |
2.7237 |
2.0948 |
2.3447 |
|
carryselect(SCR) |
5.0698 |
3.9397 |
2.0948 |
2.3447 |
|
carryselect(CLA) |
4.4335 |
3.2404 |
|
|
|
carryselect(CLA) |
5.39255 |
4.6044 |
|
|
|
condsum(CR) |
|
9.0825 |
5.7408 |
3.2099 |
|
condsum(CR) |
|
11.0821 |
5.7408 |
3.2099 |
|
condsum(SCR) |
|
6.0837 |
3.4068 |
1.7327 |
|
condsum(SCR) |
|
9.1397 |
3.7348 |
1.7327 |
|
condsum(CLA) |
|
8.2467 |
5.9756 |
|
|
condsum(CLA) |
|
12.1548 |
6.5236 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at middle, then propagate |
|
|
|
g
at middle, then propagate |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
11.1297 |
6.6634 |
4.4725 |
4.5843 |
|
carryskip(CR) |
21.1297 |
10.6634 |
5.4725 |
4.5843 |
|
carryskip(SCR) |
10.9397 |
6.2074 |
3.4845 |
2.4927 |
|
carryskip(SCR) |
20.9397 |
10.2074 |
4.4845 |
2.4927 |
|
carryskip(CLA) |
11.5937 |
7.7454 |
|
|
|
carryskip(CLA) |
21.5937 |
11.7454 |
|
|
|
carryselect(CR) |
4.724 |
3.3727 |
3.30105 |
4.58535 |
|
carryselect(CR) |
4.9698 |
3.8397 |
3.30105 |
4.58535 |
|
carryselect(SCR) |
4.4818 |
2.8717 |
2.2428 |
2.4927 |
|
carryselect(SCR) |
5.0698 |
3.9397 |
2.2428 |
2.4927 |
|
carryselect(CLA) |
4.15375 |
3.07765 |
|
|
|
carryselect(CLA) |
5.39255 |
4.6044 |
|
|
|
condsum(CR) |
|
8.2873 |
5.176 |
2.7603 |
|
condsum(CR) |
|
10.2869 |
5.176 |
2.7603 |
|
condsum(SCR) |
|
6.0837 |
3.4068 |
1.7327 |
|
condsum(SCR) |
|
9.1397 |
3.7348 |
1.7327 |
|
condsum(CLA) |
|
6.57545 |
5.1881 |
|
|
condsum(CLA) |
|
10.4835 |
5.7361 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at last, then propagate |
|
|
|
g
at last, then propagate |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
11.2276 |
6.42535 |
3.49135 |
1.45765 |
|
carryskip(CR) |
21.2275 |
10.4254 |
4.49135 |
1.45765 |
|
carryskip(SCR) |
11.2276 |
6.42535 |
3.49135 |
1.45765 |
|
carryskip(SCR) |
21.2275 |
10.4254 |
4.49135 |
1.45765 |
|
carryskip(CLA) |
11.3588 |
6.5266 |
|
|
|
carryskip(CLA) |
21.3588 |
10.5266 |
|
|
|
carryselect(CR) |
4.7384 |
3.3799 |
3.2758 |
4.5861 |
|
carryselect(CR) |
4.9716 |
3.8415 |
3.2758 |
4.5861 |
|
carryselect(SCR) |
4.4818 |
2.8717 |
2.2428 |
2.4927 |
|
carryselect(SCR) |
5.0698 |
3.9397 |
2.2428 |
2.4927 |
|
carryselect(CLA) |
4.07875 |
3.00265 |
|
|
|
carryselect(CLA) |
5.10275 |
4.31065 |
|
|
|
condsum(CR) |
|
7.6909 |
4.8936 |
2.7603 |
|
condsum(CR) |
|
10.0877 |
4.8936 |
2.7603 |
|
condsum(SCR) |
|
6.0837 |
3.4068 |
1.7327 |
|
condsum(SCR) |
|
9.1397 |
3.7348 |
1.7327 |
|
condsum(CLA) |
|
4.67945 |
4.42435 |
|
|
condsum(CLA) |
|
8.60745 |
4.99235 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
kill
all signal |
|
|
|
|
kill
all signal |
|
|
||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
9.7598 |
8.0917 |
6.4348 |
4.1727 |
|
carryskip(CR) |
9.7598 |
8.0917 |
6.4348 |
4.1727 |
|
carryskip(SCR) |
6.9098 |
4.8997 |
3.4708 |
2.1207 |
|
carryskip(SCR) |
6.9098 |
4.8997 |
3.4708 |
2.1207 |
|
carryskip(CLA) |
14.3573 |
13.4832 |
|
|
|
carryskip(CLA) |
14.3573 |
13.4832 |
|
|
|
carryselect(CR) |
4.2998 |
2.9557 |
2.8588 |
4.1727 |
|
carryselect(CR) |
4.9698 |
3.8397 |
2.8588 |
4.1727 |
|
carryselect(SCR) |
4.1098 |
2.4997 |
1.8708 |
2.1207 |
|
carryselect(SCR) |
5.0698 |
3.9397 |
1.8708 |
2.1207 |
|
carryselect(CLA) |
3.43195 |
1.62185 |
|
|
|
carryselect(CLA) |
4.49195 |
3.36185 |
|
|
|
condsum(CR) |
|
4.8097 |
3.6588 |
2.3487 |
|
condsum(CR) |
|
8.0297 |
3.8028 |
2.3487 |
|
condsum(SCR) |
|
3.4797 |
2.2908 |
1.3607 |
|
condsum(SCR) |
|
7.2797 |
2.9908 |
1.3607 |
|
condsum(CLA) |
|
0.6297 |
0.4408 |
|
|
condsum(CLA) |
|
4.15185 |
1.28195 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
gen
all signals |
|
|
|
|
gen
all signals |
|
|
||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
10.6608 |
9.2435 |
7.5866 |
5.0737 |
|
carryskip(CR) |
10.6608 |
9.2435 |
7.5866 |
5.0737 |
|
carryskip(SCR) |
7.1338 |
5.1237 |
3.6948 |
2.3447 |
|
carryskip(SCR) |
7.1338 |
5.1237 |
3.6948 |
2.3447 |
|
carryskip(CLA) |
15.0832 |
14.3881 |
|
|
|
carryskip(CLA) |
15.0832 |
14.3881 |
|
|
|
carryselect(CR) |
4.6426 |
3.3677 |
3.4254 |
5.0737 |
|
carryselect(CR) |
5.0557 |
3.9256 |
3.4254 |
5.0737 |
|
carryselect(SCR) |
4.3338 |
2.7237 |
2.0948 |
2.3447 |
|
carryselect(SCR) |
5.2938 |
4.1637 |
2.0948 |
2.3447 |
|
carryselect(CLA) |
4.13655 |
2.86345 |
|
|
|
carryselect(CLA) |
5.19655 |
4.11545 |
|
|
|
condsum(CR) |
|
7.7693 |
5.178 |
3.0223 |
|
condsum(CR) |
|
10.3119 |
5.178 |
3.0223 |
|
condsum(SCR) |
|
5.0477 |
2.9628 |
1.5847 |
|
condsum(SCR) |
|
8.8477 |
3.6628 |
1.5847 |
|
condsum(CLA) |
|
6.55405 |
4.67675 |
|
|
condsum(CLA) |
|
10.5341 |
5.16875 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
10.5506 |
8.7837 |
7.1686 |
4.7393 |
|
carryskip(CR) |
14.5506 |
8.7837 |
7.1686 |
4.7393 |
|
carryskip(SCR) |
8.2852 |
5.1237 |
3.6948 |
2.3447 |
|
carryskip(SCR) |
12.2852 |
5.1237 |
3.6948 |
2.3447 |
|
carryskip(CLA) |
13.8706 |
14.579 |
|
|
|
carryskip(CLA) |
17.8705 |
14.579 |
|
|
|
carryselect(CR) |
4.7128 |
3.3623 |
3.34285 |
4.74035 |
|
carryselect(CR) |
4.9698 |
4.4083 |
3.34285 |
4.74035 |
|
carryselect(SCR) |
4.3338 |
2.7237 |
2.0948 |
2.3447 |
|
carryselect(SCR) |
5.0698 |
4.3117 |
2.0948 |
2.3447 |
|
carryselect(CLA) |
4.10655 |
2.9794 |
|
|
|
carryselect(CLA) |
4.49195 |
4.08065 |
|
|
|
condsum(CR) |
|
7.8981 |
5.229 |
2.8317 |
|
condsum(CR) |
|
11.2333 |
5.229 |
2.8317 |
|
condsum(SCR) |
|
5.5637 |
3.2588 |
1.5847 |
|
condsum(SCR) |
|
9.3637 |
3.9588 |
1.5847 |
|
condsum(CLA) |
|
5.90945 |
4.9126 |
|
|
condsum(CLA) |
|
9.80145 |
5.6966 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
10.4803 |
8.7419 |
7.0432 |
4.7393 |
|
carryskip(CR) |
10.4803 |
8.7419 |
7.0432 |
4.7393 |
|
carryskip(SCR) |
7.7095 |
5.1237 |
3.6948 |
2.3447 |
|
carryskip(SCR) |
7.7095 |
5.1237 |
3.6948 |
2.3447 |
|
carryskip(CLA) |
14.6583 |
14.594 |
|
|
|
carryskip(CLA) |
14.6583 |
14.594 |
|
|
|
carryselect(CR) |
4.7128 |
3.3605 |
3.34285 |
4.7393 |
|
carryselect(CR) |
5.0384 |
3.8415 |
3.34285 |
4.7393 |
|
carryselect(SCR) |
4.3338 |
2.7237 |
2.0948 |
2.3447 |
|
carryselect(SCR) |
5.0698 |
3.9397 |
2.0948 |
2.3447 |
|
carryselect(CLA) |
4.3585 |
3.07445 |
|
|
|
carryselect(CLA) |
4.50975 |
4.05865 |
|
|
|
condsum(CR) |
|
8.2027 |
4.6186 |
2.8317 |
|
condsum(CR) |
|
10.8026 |
5.0269 |
2.8317 |
|
condsum(SCR) |
|
5.9357 |
2.8868 |
1.5847 |
|
condsum(SCR) |
|
9.1397 |
3.5868 |
1.5847 |
|
condsum(CLA) |
|
6.02445 |
4.4899 |
|
|
condsum(CLA) |
|
9.7657 |
5.19585 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
10.0667 |
8.7541 |
7.139 |
4.7515 |
|
carryskip(CR) |
10.0667 |
8.7541 |
7.139 |
4.7515 |
|
carryskip(SCR) |
7.19765 |
5.2717 |
3.8428 |
2.4927 |
|
carryskip(SCR) |
7.19765 |
5.2717 |
3.8428 |
2.4927 |
|
carryskip(CLA) |
14.6474 |
14.594 |
|
|
|
carryskip(CLA) |
14.6474 |
14.594 |
|
|
|
carryselect(CR) |
4.7222 |
3.4163 |
3.3994 |
4.7515 |
|
carryselect(CR) |
5.0384 |
3.9101 |
3.3994 |
4.7515 |
|
carryselect(SCR) |
4.4818 |
2.8717 |
2.2428 |
2.4927 |
|
carryselect(SCR) |
5.0698 |
3.9397 |
2.2428 |
2.4927 |
|
carryselect(CLA) |
4.1485 |
3.07445 |
|
|
|
carryselect(CLA) |
4.50975 |
3.66765 |
|
|
|
condsum(CR) |
|
7.4893 |
4.9232 |
2.8857 |
|
condsum(CR) |
|
10.3663 |
4.9232 |
2.8857 |
|
condsum(SCR) |
|
5.5637 |
3.2588 |
1.7327 |
|
condsum(SCR) |
|
8.9917 |
3.7348 |
1.7327 |
|
condsum(CLA) |
|
4.63095 |
3.7011 |
|
|
condsum(CLA) |
|
7.57815 |
3.7513 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
10.942 |
8.1822 |
7.0432 |
4.7811 |
|
carryskip(CR) |
19.942 |
11.1822 |
7.0432 |
4.7811 |
|
carryskip(SCR) |
9.4366 |
5.5596 |
3.6948 |
2.3447 |
|
carryskip(SCR) |
18.4366 |
8.5596 |
3.6948 |
2.3447 |
|
carryskip(CLA) |
13.2279 |
12.3274 |
|
|
|
carryskip(CLA) |
22.2279 |
15.3274 |
|
|
|
carryselect(CR) |
4.7146 |
3.3623 |
3.38825 |
4.7829 |
|
carryselect(CR) |
5.4702 |
3.8397 |
3.38825 |
4.7829 |
|
carryselect(SCR) |
4.3338 |
2.7237 |
2.0948 |
2.3447 |
|
carryselect(SCR) |
5.0698 |
3.9397 |
2.0948 |
2.3447 |
|
carryselect(CLA) |
4.4335 |
3.2404 |
|
|
|
carryselect(CLA) |
5.39255 |
4.6044 |
|
|
|
condsum(CR) |
|
8.1915 |
4.8814 |
2.8735 |
|
condsum(CR) |
|
10.4581 |
4.8814 |
2.8735 |
|
condsum(SCR) |
|
5.9357 |
3.2588 |
1.7327 |
|
condsum(SCR) |
|
9.2157 |
3.8108 |
1.7327 |
|
condsum(CLA) |
|
6.55525 |
5.0199 |
|
|
condsum(CLA) |
|
10.4284 |
5.3759 |
|
|
|
t2
early arrival |
|
|
|
|
t3
middle arrival |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
propagation
chain of 32 bit |
|
|
|
propagation
chain of 32 bit |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
26.2276 |
15.4254 |
9.49135 |
6.45765 |
|
carryskip(CR) |
29.2276 |
18.4253 |
13.4914 |
6.45765 |
|
carryskip(SCR) |
26.2276 |
15.4254 |
9.49135 |
6.45765 |
|
carryskip(SCR) |
29.2276 |
18.4253 |
13.4914 |
6.45765 |
|
carryskip(CLA) |
26.3588 |
15.5266 |
|
|
|
carryskip(CLA) |
29.3588 |
18.5266 |
|
|
|
carryselect(CR) |
9.0938 |
7.7353 |
7.6312 |
8.9415 |
|
carryselect(CR) |
7.4542 |
6.8881 |
7.2076 |
5.5225 |
|
carryselect(SCR) |
9.1098 |
7.4997 |
6.8708 |
7.1207 |
|
carryselect(SCR) |
7.5398 |
6.6597 |
6.4508 |
5.6207 |
|
carryselect(CLA) |
9.07875 |
8.00265 |
|
|
|
carryselect(CLA) |
7.57275 |
7.16265 |
|
|
|
condsum(CR) |
|
14.7571 |
9.6044 |
7.1157 |
|
condsum(CR) |
|
16.7985 |
12.9814 |
5.5607 |
|
condsum(SCR) |
|
13.9677 |
8.6628 |
6.3607 |
|
condsum(SCR) |
|
16.3957 |
12.3628 |
5.6607 |
|
condsum(CLA) |
|
13.6795 |
10.4244 |
|
|
condsum(CLA) |
|
16.6075 |
13.9924 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at 0, then propagate |
|
|
|
g
at 0, then propagate |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
26.5458 |
15.6135 |
9.4906 |
6.3268 |
|
carryskip(CR) |
29.4455 |
19.0628 |
15.0391 |
5.5207 |
|
carryskip(SCR) |
26.1637 |
15.4314 |
9.7085 |
7.3447 |
|
carryskip(SCR) |
29.1637 |
18.4314 |
13.7085 |
5.6207 |
|
carryskip(CLA) |
26.5776 |
16.2463 |
|
|
|
carryskip(CLA) |
29.7975 |
19.4522 |
|
|
|
carryselect(CR) |
9.7159 |
7.9058 |
6.88005 |
6.32785 |
|
carryselect(CR) |
7.4398 |
6.4697 |
5.8629 |
5.52175 |
|
carryselect(SCR) |
9.3338 |
7.7237 |
7.0948 |
7.3447 |
|
carryselect(SCR) |
7.5398 |
6.6597 |
6.4508 |
5.6207 |
|
carryselect(CLA) |
9.21355 |
8.03445 |
|
|
|
carryselect(CLA) |
7.92155 |
7.4564 |
|
|
|
condsum(CR) |
|
15.8878 |
9.9969 |
6.3668 |
|
condsum(CR) |
|
17.0817 |
12.6408 |
5.5607 |
|
condsum(SCR) |
|
14.1917 |
8.8868 |
6.5847 |
|
condsum(SCR) |
|
16.3957 |
12.3628 |
5.6607 |
|
condsum(CLA) |
|
17.0268 |
11.7137 |
|
|
condsum(CLA) |
|
20.1027 |
15.5436 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at middle, then propagate |
|
|
|
g
at middle, then propagate |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
26.1297 |
15.6634 |
9.4725 |
8.9397 |
|
carryskip(CR) |
24.1297 |
15.0757 |
12.4198 |
6.2728 |
|
carryskip(SCR) |
25.9397 |
15.2074 |
8.4845 |
7.1207 |
|
carryskip(SCR) |
23.9397 |
14.6476 |
11.9917 |
5.8447 |
|
carryskip(CLA) |
26.5937 |
16.7454 |
|
|
|
carryskip(CLA) |
24.5937 |
15.0922 |
|
|
|
carryselect(CR) |
9.0794 |
7.7281 |
7.6297 |
8.94075 |
|
carryselect(CR) |
8.1919 |
7.2218 |
6.615 |
6.27385 |
|
carryselect(SCR) |
9.1098 |
7.4997 |
6.8708 |
7.1207 |
|
carryselect(SCR) |
7.7638 |
6.7937 |
6.4508 |
5.8447 |
|
carryselect(CLA) |
9.15375 |
8.07765 |
|
|
|
carryselect(CLA) |
7.6925 |
7.4564 |
|
|
|
condsum(CR) |
|
15.3535 |
9.8868 |
7.1157 |
|
condsum(CR) |
|
17.0988 |
12.7735 |
6.0628 |
|
condsum(SCR) |
|
13.9677 |
8.6628 |
6.3607 |
|
condsum(SCR) |
|
16.6197 |
12.5868 |
5.8847 |
|
condsum(CLA) |
|
15.5755 |
11.1881 |
|
|
condsum(CLA) |
|
18.4325 |
14.5609 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
g
at last, then propagate |
|
|
|
g
at last, then propagate |
|
||||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
26.2276 |
15.4254 |
9.49135 |
6.45765 |
|
carryskip(CR) |
29.2276 |
18.4253 |
13.4914 |
6.45765 |
|
carryskip(SCR) |
26.2276 |
15.4254 |
9.49135 |
6.45765 |
|
carryskip(SCR) |
29.2276 |
18.4253 |
13.4914 |
6.45765 |
|
carryskip(CLA) |
26.3588 |
15.5266 |
|
|
|
carryskip(CLA) |
29.3588 |
18.5266 |
|
|
|
carryselect(CR) |
9.0938 |
7.7353 |
7.6312 |
8.9415 |
|
carryselect(CR) |
7.4542 |
6.8881 |
7.2076 |
5.5225 |
|
carryselect(SCR) |
9.1098 |
7.4997 |
6.8708 |
7.1207 |
|
carryselect(SCR) |
7.5398 |
6.6597 |
6.4508 |
5.6207 |
|
carryselect(CLA) |
9.07875 |
8.00265 |
|
|
|
carryselect(CLA) |
7.57275 |
7.16265 |
|
|
|
condsum(CR) |
|
14.7571 |
9.6044 |
7.1157 |
|
condsum(CR) |
|
16.7985 |
12.9814 |
5.5607 |
|
condsum(SCR) |
|
13.9677 |
8.6628 |
6.3607 |
|
condsum(SCR) |
|
16.3957 |
12.3628 |
5.6607 |
|
condsum(CLA) |
|
13.6795 |
10.4244 |
|
|
condsum(CLA) |
|
16.6075 |
13.9924 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
kill
all signal |
|
|
|
|
kill
all signal |
|
|
||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
14.5268 |
12.8587 |
11.2018 |
8.9397 |
|
carryskip(CR) |
10.1698 |
9.0377 |
7.6488 |
5.5207 |
|
carryskip(SCR) |
11.9098 |
9.8997 |
8.4708 |
7.1207 |
|
carryskip(SCR) |
8.9398 |
7.7697 |
6.7608 |
5.6207 |
|
carryskip(CLA) |
19.2233 |
18.2852 |
|
|
|
carryskip(CLA) |
14.3573 |
13.4832 |
|
|
|
carryselect(CR) |
9.0668 |
7.7227 |
7.6258 |
8.9397 |
|
carryselect(CR) |
7.4398 |
6.8827 |
7.2058 |
5.5207 |
|
carryselect(SCR) |
9.1098 |
7.4997 |
6.8708 |
7.1207 |
|
carryselect(SCR) |
7.5398 |
6.6597 |
6.4508 |
5.6207 |
|
carryselect(CLA) |
8.43195 |
6.62185 |
|
|
|
carryselect(CLA) |
6.96195 |
5.99185 |
|
|
|
condsum(CR) |
|
13.1107 |
9.1928 |
7.1157 |
|
condsum(CR) |
|
15.5637 |
12.5698 |
5.5607 |
|
condsum(SCR) |
|
12.4797 |
8.2908 |
6.3607 |
|
condsum(SCR) |
|
15.2797 |
11.9908 |
5.6607 |
|
condsum(CLA) |
|
9.47085 |
6.28195 |
|
|
condsum(CLA) |
|
12.1519 |
10.282 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
gen
all signals |
|
|
|
|
gen
all signals |
|
|
||
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
9.7159 |
7.9058 |
6.8769 |
6.3268 |
|
carryskip(CR) |
10.6608 |
7.0538 |
6.4449 |
6.1048 |
|
carryskip(SCR) |
12.1338 |
10.1237 |
8.6948 |
7.3447 |
|
carryskip(SCR) |
9.1638 |
7.9937 |
6.9848 |
5.8447 |
|
carryskip(CLA) |
20.0531 |
19.388 |
|
|
|
carryskip(CLA) |
15.0832 |
14.3881 |
|
|
|
carryselect(CR) |
9.7429 |
7.9184 |
6.8769 |
6.3268 |
|
carryselect(CR) |
8.0383 |
7.061 |
6.4449 |
6.1048 |
|
carryselect(SCR) |
9.3338 |
7.7237 |
7.0948 |
7.3447 |
|
carryselect(SCR) |
7.7638 |
6.8837 |
6.6748 |
5.8447 |
|
carryselect(CLA) |
9.10655 |
7.86345 |
|
|
|
carryselect(CLA) |
7.66655 |
7.02345 |
|
|
|
condsum(CR) |
|
16.3052 |
9.8434 |
6.3668 |
|
condsum(CR) |
|
18.4165 |
13.4024 |
5.9258 |
|
condsum(SCR) |
|
14.0477 |
8.9628 |
6.5847 |
|
condsum(SCR) |
|
16.8477 |
12.6628 |
5.8847 |
|
condsum(CLA) |
|
15.4641 |
10.6768 |
|
|
condsum(CLA) |
|
18.4941 |
14.1887 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
19.2191 |
12.8266 |
11.0937 |
8.6644 |
|
carryskip(CR) |
16.189 |
9.9305 |
8.5416 |
6.2463 |
|
carryskip(SCR) |
17.2852 |
10.1237 |
8.6948 |
7.3447 |
|
carryskip(SCR) |
15.1754 |
8.1417 |
7.1328 |
5.9927 |
|
carryskip(CLA) |
22.8406 |
19.388 |
|
|
|
carryskip(CLA) |
18.8705 |
14.579 |
|
|
|
carryselect(CR) |
9.7285 |
7.913 |
7.26795 |
8.66545 |
|
carryselect(CR) |
8.2374 |
7.7715 |
8.1746 |
6.24735 |
|
carryselect(SCR) |
9.3338 |
7.7237 |
7.0948 |
7.3447 |
|
carryselect(SCR) |
7.9118 |
7.0317 |
6.8228 |
5.9927 |
|
carryselect(CLA) |
9.03155 |
7.78845 |
|
|
|
carryselect(CLA) |
7.8885 |
7.1114 |
|
|
|
condsum(CR) |
|
16.2421 |
10.0281 |
6.7568 |
|
condsum(CR) |
|
18.5775 |
14.6034 |
6.2863 |
|
condsum(SCR) |
|
14.4157 |
8.8868 |
6.5847 |
|
condsum(SCR) |
|
16.9917 |
12.9588 |
6.0327 |
|
condsum(CLA) |
|
14.0907 |
9.72165 |
|
|
condsum(CLA) |
|
17.7805 |
14.4009 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
16.717 |
12.7848 |
10.9683 |
8.6644 |
|
carryskip(CR) |
11.4803 |
9.1631 |
7.6906 |
5.5207 |
|
carryskip(SCR) |
14.7095 |
10.1237 |
8.6948 |
7.3447 |
|
carryskip(SCR) |
8.9398 |
7.7697 |
6.7608 |
5.6207 |
|
carryskip(CLA) |
21.4383 |
19.388 |
|
|
|
carryskip(CLA) |
15.6583 |
14.594 |
|
|
|
carryselect(CR) |
9.7285 |
7.9112 |
7.26795 |
8.6644 |
|
carryselect(CR) |
7.4452 |
6.8845 |
7.24865 |
5.5207 |
|
carryselect(SCR) |
9.3338 |
7.7237 |
7.0948 |
7.3447 |
|
carryselect(SCR) |
7.5398 |
6.6597 |
6.4508 |
5.6207 |
|
carryselect(CLA) |
9.13855 |
7.78845 |
|
|
|
carryselect(CLA) |
6.96195 |
5.99185 |
|
|
|
condsum(CR) |
|
16.1351 |
9.4177 |
6.7568 |
|
condsum(CR) |
|
17.6189 |
12.9926 |
5.5607 |
|
condsum(SCR) |
|
14.2677 |
8.5148 |
6.5847 |
|
condsum(SCR) |
|
16.7677 |
12.2148 |
5.6607 |
|
condsum(CLA) |
|
13.6457 |
9.28395 |
|
|
condsum(CLA) |
|
15.8366 |
11.9995 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
15.0667 |
13.4451 |
11.83 |
9.4425 |
|
carryskip(CR) |
10.2534 |
9.1631 |
7.7742 |
5.5207 |
|
carryskip(SCR) |
12.1976 |
10.2717 |
8.8428 |
7.4927 |
|
carryskip(SCR) |
8.9398 |
7.7697 |
6.7608 |
5.6207 |
|
carryskip(CLA) |
19.6474 |
19.462 |
|
|
|
carryskip(CLA) |
14.6474 |
14.594 |
|
|
|
carryselect(CR) |
9.4892 |
8.1073 |
8.0904 |
9.4425 |
|
carryselect(CR) |
8.0413 |
7.0694 |
7.3147 |
5.5207 |
|
carryselect(SCR) |
9.4818 |
7.8717 |
7.2428 |
7.4927 |
|
carryselect(SCR) |
7.6538 |
6.8837 |
6.6748 |
5.6207 |
|
carryselect(CLA) |
9.07875 |
7.91745 |
|
|
|
carryselect(CLA) |
7.45855 |
6.5257 |
|
|
|
condsum(CR) |
|
15.7946 |
10.3052 |
7.5767 |
|
condsum(CR) |
|
17.4588 |
13.2063 |
5.5607 |
|
condsum(SCR) |
|
14.5637 |
9.2588 |
6.7327 |
|
condsum(SCR) |
|
16.4717 |
12.5868 |
5.6607 |
|
condsum(CLA) |
|
13.2412 |
9.5691 |
|
|
condsum(CLA) |
|
15.4474 |
12.0883 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
random |
|
|
|
|
|
random |
|
|
|
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
groupsize
bit |
2 |
4 |
8 |
16 |
|
carryskip(CR) |
20.8093 |
13.4999 |
11.2431 |
8.981 |
|
carryskip(CR) |
17.942 |
9.1822 |
7.9844 |
6.0893 |
|
carryskip(SCR) |
19.4366 |
11.5596 |
8.6948 |
7.3447 |
|
carryskip(SCR) |
16.4366 |
8.35965 |
7.1328 |
5.9927 |
|
carryskip(CLA) |
23.008 |
18.1214 |
|
|
|
carryskip(CLA) |
20.2279 |
13.3274 |
|
|
|
carryselect(CR) |
9.7303 |
7.913 |
7.58815 |
8.9828 |
|
carryselect(CR) |
8.0156 |
7.2201 |
7.54245 |
6.0911 |
|
carryselect(SCR) |
9.3338 |
7.7237 |
7.0948 |
7.3447 |
|
carryselect(SCR) |
7.9118 |
7.0317 |
6.8228 |
5.9927 |
|
carryselect(CLA) |
9.21355 |
8.03445 |
|
|
|
carryselect(CLA) |
7.58975 |
6.87865 |
|
|
|
condsum(CR) |
|
15.9208 |
10.1231 |
7.0734 |
|
condsum(CR) |
|
18.6297 |
13.7164 |
5.9723 |
|
condsum(SCR) |
|
14.4157 |
9.2588 |
6.5847 |
|
condsum(SCR) |
|
17.5117 |
12.9588 |
6.0327 |
|
condsum(CLA) |
|
15.0795 |
10.814 |
|
|
condsum(CLA) |
|
17.9058 |
13.8891 |
|
|
|
||
|
Home | About Me | Text Depository | Future Enhancements | Guest Book | Links
All Rights Reserved. |
